2.9MW·h Marine Energy Storage Container
Basic Information

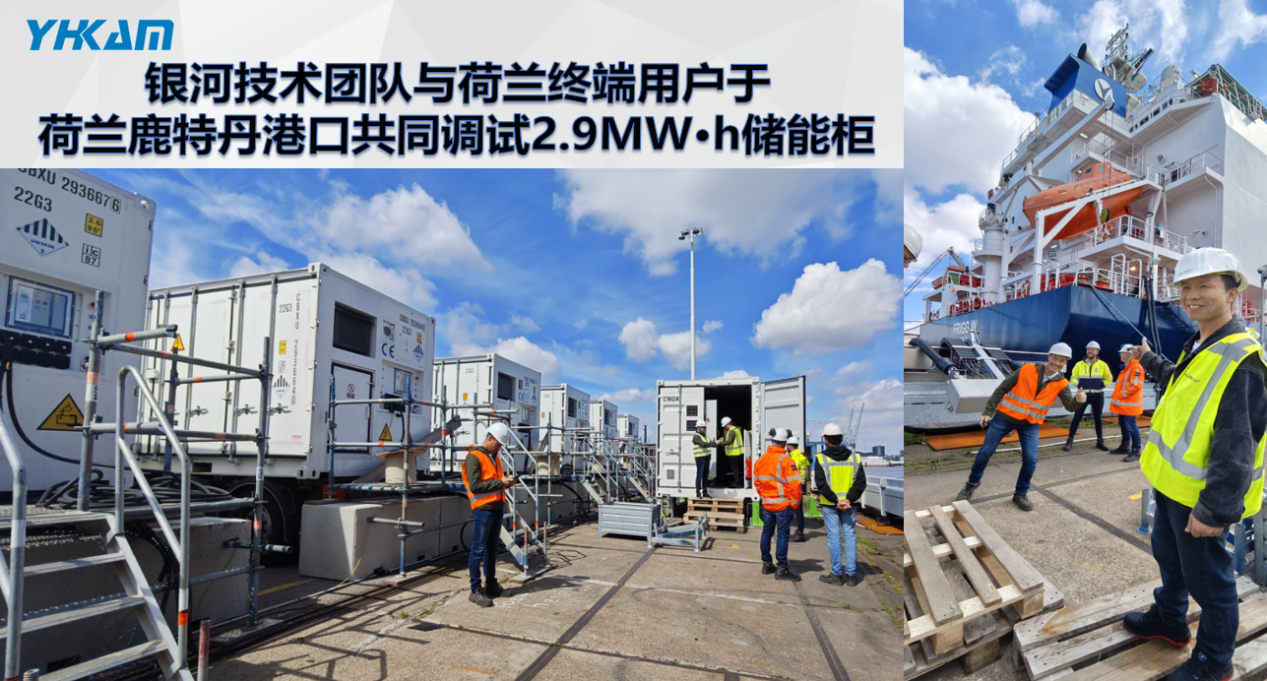

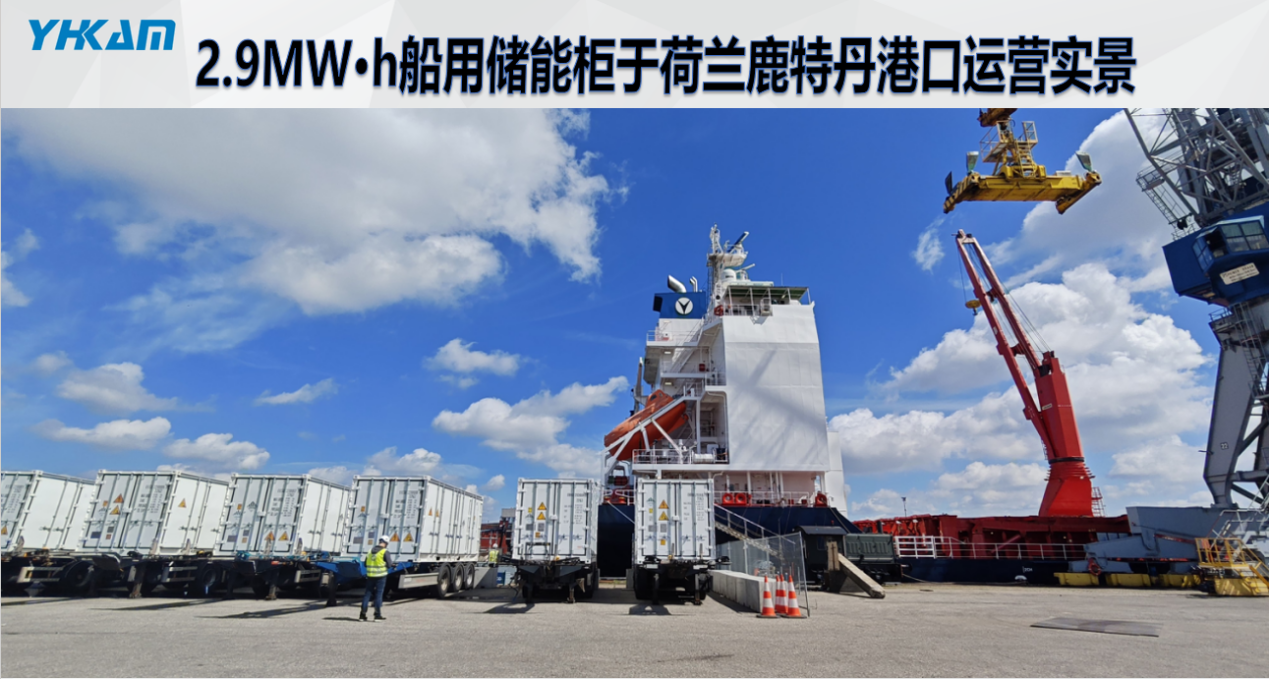

The 2.9MW·h marine energy storage container is constructed using a standard 20-foot container and has the capacity to store up to 3225kW·h of electricity. It can be configured in sets of 1-2-4 containers, making it suitable for powering electric cargo ships weighing between 1000 and 10000 tons, with a range of 150 to 250 kilometers on a single charge. Its pure electric drive mode significantly reduces emissions and pollution, with zero fuel consumption throughout the voyage, resulting in zero carbon emissions, sulfur dioxide emissions, other exhaust pollutants as well as PM2.5 particles.At present, our company has exported more than 20units 2.9MW·h Marine energy storage containers to the Netherlands and put them into the ports of Rotterdam and Amsterdam for operation.
Certification
Classification Certification from Registro Italiano Navale (RINA)
Product Features
- Long service life: the service life of marine energy storage battery pack is up to 8years, and the service life of supporting equipment is up to 10 years.
- Long discharge time: the discharge time of the storage container can reach 6-12 hours (depending on the ship’s displacement, driving power, and configuration combination of the energy storage container).
- High efficiency: The use of low internal resistance lithium iron phosphate batteries results in a charging and discharging efficiency of up to 92% for the energy storage system.
- Safe and reliable: The high-energy battery module adopts a fully sealed battery box and bidirectional silicone gel conduction heat dissipation technology. The external structure facilitates ventilation and heat dissipation, effectively isolating the battery from external air contact, thus preventing the conditions necessary for combustion. The automatic control cooling/heating system is controlled by the temperature monitoring information by the BMS.
- Using the bi-directional balanced battery management system independently developed and produced by YH, the balanced current is up to 4A, which can balance the battery monomer with the maximum capacity deviation of 10%, greatly improving the battery life and effectively preventing the damage and unsafe factors caused by the battery overcharge and over-discharge.
Application Scenarios
Applications
Used for energy storage on 1,000-10,000-ton inland container ships
Market
Europe (Netherlands: inland waterway cargo transportation from Amsterdam to Rotterdam Port)
Specifications
| Item | Parameters |
|---|---|
| External dimensions | L6058×W2438×H2591mm |
| Net Weight | 29000kgs |
| Rated output power | 500kW |
| Peak output power | 1000kW |
| Battery capacity | 2900kW·h |
| Available capacity for operation | 2600kW·h(Retaining10% to prolong life) |
| Battery Pack spec. | Combination mode: 3P30S Single cell specification: 105Ah/3.2V Voltage: 96V Capacity: 30.24kW·h Weight: 215kg |
| Quantity of battery Pack | 96Packs |
| System rated power charging and discharging efficiency | ≥92% |
| Rated DC voltage | 768V |
| Maximum charge voltage | 840V |
| Rated charge power | 1200KW |
| Full-charge time | 2hours by 1.2MW charging power |
| System response time at full power | ＜200ms |
| IOC hardware power trip limit | 120% of the rated current. |
| System overload | 1000kW can maintain 30 min |
| Anti-seismic grade of the structures | Level 4 |
| Anti-typhoon ability | Level 3 |
| Operating temperature range | -20℃-45℃ |
FAQ
- What is the capacity of this energy storage container?
-
The 2.9MW·h marine energy storage container features ultra-high capacity:
- Can store up to 2900kW·h of electricity
- Constructed using a standard 20-foot container with compact structure
- Available capacity for operation is 2600kW·h (Retaining 10% to prolong life)
- Configurable in sets of 1-2-4 containers for flexible adaptation to different requirements
This large capacity design enables vessels to achieve longer range, reduce charging frequency, and improve operational efficiency.
- What types of vessels is this energy storage container suitable for?
-
This energy storage container is specifically designed for certain types of vessels:
- Energy storage power drive of 1,000-10,000-ton inland container ships
- Can achieve a range of 150-250 kilometers on a single charge
- Pure electric drive mode significantly reduces emissions and pollution
- Zero fuel consumption throughout the voyage with zero emissions
The product has been validated in the European market:
- More than 20 units of 2.9MW·h marine energy storage containers have been exported to the Netherlands
- Successfully deployed in the ports of Rotterdam and Amsterdam for operation
This proves the product's competitiveness and reliability in the international market.
- How is the safety of the energy storage container guaranteed?
-
Our energy storage container employs multiple safety protection measures:
- Fully sealed battery box and bidirectional silicone gel conduction heat dissipation technology
- Effectively isolates the battery from external air contact from the source, preventing the conditions necessary for combustion
- Automatic control cooling/heating system managed by BMS temperature monitoring information
- Equipped with independently developed bi-directional balanced battery management system
YH's independently developed bi-directional balanced battery management system features:
- Balanced current up to 4A
- Can balance battery monomers with up to 10% capacity deviation
- Greatly improves battery service life
- Effectively prevents damage and safety issues caused by battery overcharge and over-discharge
These safety measures together form a comprehensive safety protection system to ensure vessel and personnel safety.
- Why choose the 2.9MW·h Marine Energy Storage Container?
-
There are several important reasons to choose our 2.9MW·h marine energy storage container:
- Ultra-high Capacity Can store up to 2900kW·h of electricity, meeting energy requirements for large vessels
- Long Service Life Battery service life up to 8 years and supporting equipment up to 10 years
- High Efficiency Low internal resistance lithium iron phosphate batteries result in up to 92% charging and discharging efficiency
- International Certification RINA (Registro Italiano Navale) certification ensures reliable quality
- Market Validation Successfully operating in the Netherlands with international customer recognition
These advantages make the 2.9MW·h marine energy storage container the ideal choice for large electric vessels.
- How does the energy storage container perform in harsh environments?
-
Our energy storage container features excellent environmental adaptability:
- Operating temperature range: -20℃ to 45℃, adapting to various climate conditions
- System seismic resistance grade: Level 4, able to withstand vibration during vessel navigation
- System typhoon resistance capability: Level 3, adapting to harsh sea conditions
- System full power response time: <200ms, ensuring rapid response
In addition, the product features:
- Long discharge time: Can reach 6-12 hours (depending on ship's displacement, driving power, and container configuration)
- System overload capacity: 1000kW can maintain 30 min
- IOC hardware power trip limit: 120% of the rated current
These characteristics ensure the energy storage container can operate stably and reliably in various complex environments.
