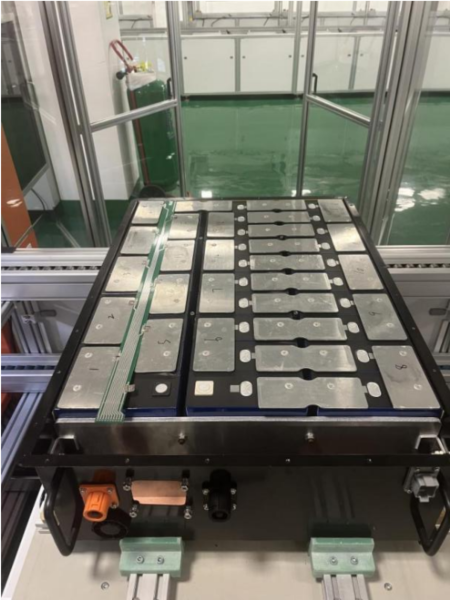

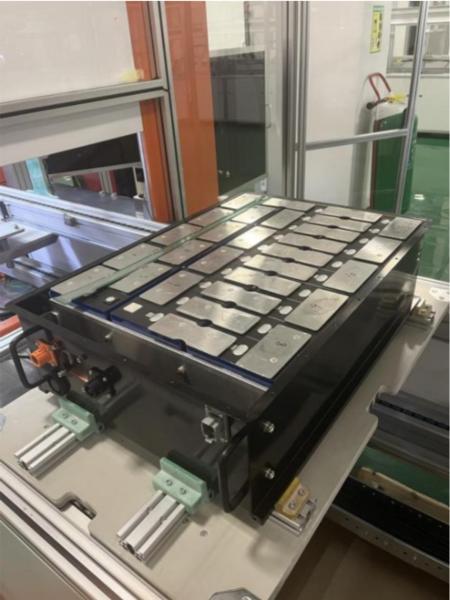

Battery PACK for Marine ESS
Basic Information
Certification
CCS China Classification Society Certification, Bureau Veritas (BV) Certification
Product Features
- The top of the casing adopts the silicone gel heat conduction and dissipation technology, which directly conducts the positive and negative electrodes to the cover of the casing, and transfers the heat outwards, which significantly improves the cooling and heat dissipation effect of the air conditioner and is conducive to extending the battery life.
- The battery PACK uses a newly designed BMS data acquisition circuit board, integrated temperature sensor, instead of the cumbersome layout of the sampling harnesses, the design is more concise and clean, easier to install and maintain.
- Battery PACK case with IP67 waterproof rating is highly suitable for the application requirements of marine energy storage containers.
Application Scenarios
Applications
Thousand-tons level electric ship energy storage containers
Specifications
| Item | Parameters |
|---|---|
| Dimensions | L869×W588×H235mm |
| Configuration (Parallels*series) | 1P30S |
| Cell parameters | 314Ah/3.2V |
| Module Voltage | 96V |
| Voltage Range | 75~108 V |
| Battery Capacity | 30.1kW·h |
| Weight | 200kg |
| Maximum charge and discharge power | 15kW (at 0.5C charge/discharge rate) |
| Communicating protocol | CAN 2.0 |
| Discharge temperature range | -20～60℃ |
| Charging temperature range | 0～50℃ |
| Storage temperature | -20～50℃，SOC 30～50% |
| Casing material | Q235 |
FAQ
- What types of vessels is this battery PACK suitable for?
-
The battery PACK for marine energy storage containers is designed for specific types of vessels:
- Suitable for thousand-tons level electric ship energy storage containers
- Adopts silicone gel heat conduction technology, significantly improving air conditioning cooling and heat dissipation effects
- Conducive to extending battery life
The product has wide applicability:
- Highly suitable for the application requirements of marine energy storage containers
- Suitable for various inland cargo ships and engineering vessels
- Can be used in large-capacity energy storage systems for electric container ships
- What is the waterproof rating of the battery PACK?
-
Our battery PACK features excellent waterproof performance:
- Battery PACK case with IP67 waterproof rating
- Highly suitable for the application requirements of marine energy storage containers
- Able to operate stably in harsh marine environments
Product design features:
- Casing material uses Q235 steel with good corrosion resistance
- Able to work normally in discharge temperature range of -20～60℃
- Safe charging in charging temperature range of 0～50℃
- What are the capacity and power parameters of the battery PACK?
-
Our battery PACK features excellent capacity and power characteristics:
- Battery capacity is 30.1kW·h
- Maximum charge and discharge power is 15kW (at 0.5C charge/discharge rate)
- Cell parameters: 314Ah/3.2V
- Module voltage: 96V
Technical parameter details:
- Configuration: 1P30S
- Dimensions: L869×W588×H235mm
- Weight: 200kg
- Voltage range: 75~108 V
- Why choose the battery PACK for marine ESS?
-
There are several important reasons to choose our battery PACK for marine energy storage containers:
- Advanced Heat Dissipation Technology The top of the casing adopts silicone gel heat conduction technology, significantly improving air conditioning cooling and heat dissipation effects
- Simplified Design Uses newly designed BMS data acquisition circuit board with integrated temperature sensor, replacing cumbersome sampling harnesses
- High Protection Level Waterproof rating reaches IP67, suitable for marine environments
- Easy Maintenance The design is more concise and clean, easier to install and maintain
- International Certification Obtained CCS China Classification Society Certification and Bureau Veritas (BV) Certification
These advantages make our battery PACK the ideal choice for marine energy storage systems.
- How does the battery PACK perform in harsh environments?
-
Our battery PACK features excellent environmental adaptability:
- Able to work normally in discharge temperature range of -20～60℃
- Safe charging in charging temperature range of 0～50℃
- Storage temperature range: -20～50℃ (SOC 30～50%)
- Suitable for various marine environments and climate conditions
The product also features:
- Uses Q235 casing material with good mechanical strength and corrosion resistance
- Supports CAN 2.0 communication protocol for easy system integration
- Compact design with dimensions of L869×W588×H235mm, saving installation space
These characteristics ensure the battery PACK can operate stably and reliably in various complex environments.
